Departure Angle Measurement System
INTRODUCING THE PLIANT OFFSHORE DAMS
Pliants Offshore developed the DAMS (Departure Angle Measurement System). Designed for cable laying vessels, it allows accurate, reliable and responsive
measurement of the departure angle of cables.
It has successfully proven its value during automated cable laying processes and cable loading. We integrated an advanced 3D engine with optimal tracking and optimized filtering algorithms, exceeding all available existing systems on the market.
Robust and proven technololgy
Our commitment to excellence is echoed by our esteemed client Subsea 7 by their following quote:
We have two systems on hire since January ’22 installed on one of our cable lay vessels. Since mobilisation we have not had any mechanical breakdown of the Pliant system despite the challenging environmental conditions. It’s a reliable laser detection system that once setup correctly will provide stable and accurate readings of the horizontal and vertical departure angle of our cables during lay
01
Reliable in all weather conditions
02
Supports multiple vessel configurations
03
Extremely accurate, exceeding conventional laser measurements
04
Fully configurable for various conditions, redundancy or extreme performance
05
Proven in automated cable laying
06
Plug-and-play commissioning
07
DAMS service software, for on-site service and remote support
Information
Robust

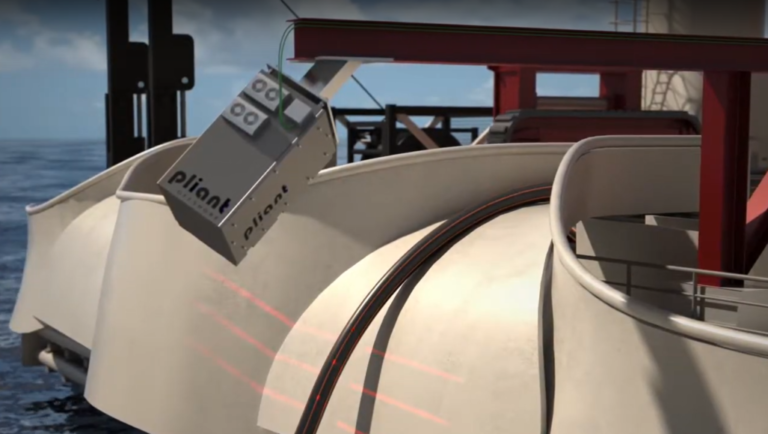

The Pliant DAMS is built using only high-grade offshore-proof materials to ensure durability. The device has an internal climate controlled environment, sealed in an airtight stainless steel box for maximum robustness in demanding offshore conditions.
Plug & Play
The Pliant DAMS is a Plug-and-Play device. The advanced calibration functionality allows easy configuration with a single mouse click in the DAMS service software. Multiple vessel configurations can be stored parallel and easily switched if the DAMS is mounted on another vessel.
Non-Destructive Measurements
The infrared laser technology ensures that no phyiscal contact with the cable is required. Compared to mechanical measurement systems, there is no risk of physical damage to the cable.
Accurate
The DAMS is accurate up to 0.2° over the entire field of view for vertical angles, horizontal up to 0.5°. The DAMS accuracy outperforms other available system due to its advanced 3D engine. Depending on the placement of de DAMS the accuracy can vary and increased even further.
Fast
The Pliant DAMS is very suitable for cable laying automation by direct control of cable tensioners. The optimized low-latency filters produce a reliable and stable signal up to 25Hz.
Configuration
STANDARD
The standard edition is an accurate and responsive solution for angle measurements. It can be used for the automated cable laying process. The standard edition is upgradable to the premium edition.
- 10 Hz
- ± 0.4° vertical angle
- ± 1.0° horizontal angle
- 2x SICK Lidar Sensors
- Single cooling / heating unit
Premium
The premium edition features the most accurate measurements with the lowest latency. Laser measurements, power supplies and climate control are all redundant to ensure the system can be used at any time for fully automated cable laying control.
- 25 Hz
- ± 0.2° vertical angle
- ± 0.5° horizontal angle
- 3x SICK Lidar Sensors
- Dual cooling / heating unit
- Redundant power supply
